High speed large capacity Peanut Cutting Machine Peanut Butter Production Line Sesame Paste Grinder

High speed large capacity Peanut Cutting Machine Peanut Butter Production Line Sesame Paste Grinder

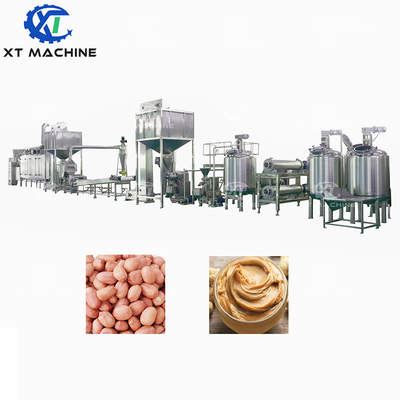

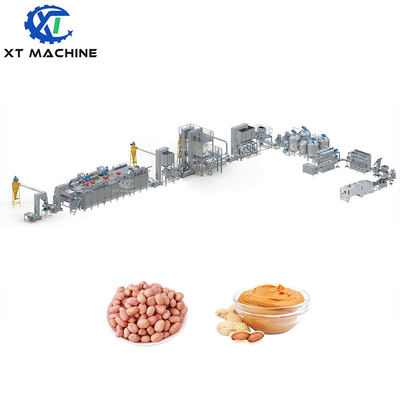

※Equipment flow

1. Baking: The continuous peanut roaster has an operating temperature of 150-180℃ and a baking time of 40-45 minutes.
2. Peeling: The red outer skin is removed by the friction of two rubber rollers and sucked out by the cyclone system. Most of the peanuts are peeled into half pieces or small pieces, and the bitter germ is separated by the vibrating screen at the bottom of the blanching machine. Finally, the blanched peanuts fall into the selection conveyor.
3. Primary grinding: The blanched peanuts first enter the primary grinder, and under the action of the spiral force, they fall into the limited size sand disc between the two discs and are ground by the high-speed rotating sand disc. The primary butter will flow into the storage tank and then pumped into the secondary grinder. The grinding fineness can reach 60-100 mesh.
4. Secondary grinder: The secondary grinder is used for fine grinding, and the grinding fineness can reach 150-160 mesh. And equipped with a water cooling system to reduce the temperature of the grinding chamber (including the primary and secondary grinders). The system must avoid overheating and provide sensitive components and easy-to-replace components.
5. Mixing tank: This storage tank adopts a double-layer structure and has two functions: stirring and making the butter more uniform. In addition, it can also significantly reduce the temperature of the butter. This storage tank must be equipped with a thermometer to measure the temperature.
6. Cooling: The butter is pumped into the cooler through the pipe inside the cooler until it reaches the ideal temperature. The cooler must be equipped with a temperature control device with a temperature range from the cooling temperature to 45-60 degrees Celsius.
7. Freezer: It is a key part of the entire equipment. When the freezer is working, it will produce cooling water (the water temperature can be set), and the cooling water will be divided into three ways: the first way provides cooling water for the grinder, the second way provides cooling water for the mixing tank, and the third way provides cooling water for the cooler. The cooling water can be reused, so there is no water loss. All connecting pipes in the cooling system are adopted
8. Degassing: Remove air to make the peanut butter more stable.

※Application

Peanut Butter, Almond Butter, Hazelnut Butter, Macadamia Nut Butter, Pecan Butter, Pistachio Butter, Walnut Butter, Pumpkin Seed Butter, Sesame Seed Paste/ Tahini, Sunflower Seed Butter

※Capacity

500kg/h , 1000kg/h , 1500kg/h, 2000kg/h.etc

FAQ

1. Q: Can you customize the machine for me ?
    A: Yes, we can customize machine or production line  according to customer's requirements and workshop size.

2. Q: When can I get the price?
    A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your E-mail so that we will regard your inquiry priority.

3. Q:  Can you guarantee your quality?
    A:  Of course. We are the manufacture factory. More important , we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

4. Q: Whether you could make our brand on your products?
    A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

5. Q: What are your advantages compared with your competitors?
    A: With rich industry experience and strict Product Quality Control systems, we provide:
    1). Stable and reliable product at reasonable price
    2). Good customer service: Fast response to any inquiry or question
    3). On-time delivery.
