Automatic Temperature Controller Groundnut Frying Machine Peanut Frying Machine

Brand Name:	XT
Model Number:	XT-Fry
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	1-2 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product Name:

Automatic Temperature Controller Groundnut Frying Machine Peanut Frying Machine

Material:

SUS304

Capacity:

200KGS/H ---2000KGS/H

Voltage:

380±10V

Output Product:

Fried Peanut

Heating Method:

LNG/LPG Gas, Electricity

Warrenty:

1 Year

After Warranty:

Video Technical Support, Online Support, Spare Parts

Application:

Peanut, Hazelnut

Processing:

Soaking, Peeling,picking .drying,frying,de-oiling,flavoring,cooling

Packaging Details:

Plywood pallet with wrapping film

Supply Ability:

1-2 Set/Month

Highlight:

SUS304 Groundnut Frying And Peeling Machine

Auto Groundnut Frying And Peeling Machine

380V Peanut Frying Machine

Product Description

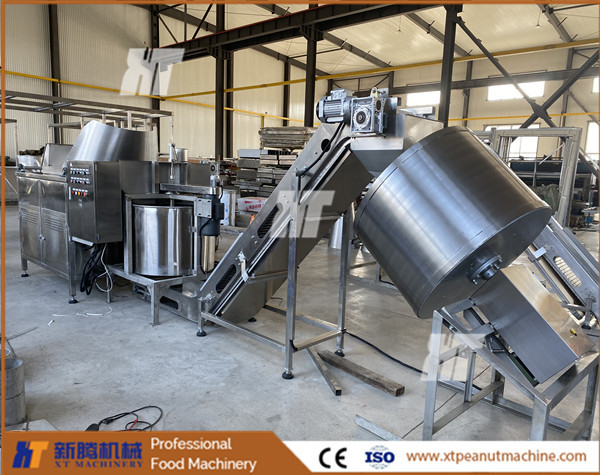

Automatic Temperature Controller Groundnut Frying Machine Peanut Frying Machine

※Description:

1. Frying machine is mainly used for processing peanut, green bean, broad bean etc.

2. 304 stainless steel material, automatic temperature controller, automatic discharging device. You could choose the automatic inputting device and automatic stirring device as your preference.

3. Heating method: Coal-fired, diesel-fuel-fired, gas-fired, electric-fired, heat conducting oil-fired.ort.

※Processing:

Soaking	elevator will take peanut into soaking machine when water temperature get 97-98 degree. Peanut will through hot water for 3-5minutes by conveyor belt.
Peeling	Distributive belt will send soaked peanut into each peeling machine to remove the red skin.
Picking	take out bad and red skin peanut from conveyor belt.
Drying	Dry surface of peanut in low temperature for 20-30 minutes before frying. Moisture will get 11-13%
Frying	Frying peanut for 5-6minutes in 150-160 degree. Peanut moisture should 11-13% before frying.
De-oiling	remove extra oil from peanut.
Flavoring	Mix salt and pepper with peanut.
Cooling	cooling peanut till 30-40 degree before packing.

※Technical data:

MODEL	FRYING TEMP.	POWER	VOLTAGE	DIMENSIONS	OIL CAPACITY
GWF-1000	0-300℃	24KW	220/380V	120012001000mm	180L
GWF-1200	0-300℃	36KW	220/380V	140014001000mm	230L
GWF-1500	0-300℃	48KW	220/380V	170017001000mm	320L
GWF-1800	0-300℃	60KW	220/380V	200020001000mm	450L
