Automatic Peanut Frying Machine with 500-1000kg/h Capacity SUS304 Stainless Steel and Intelligent Temperature Control

Basic Properties
Place of Origin: China Shandong
Brand Name: XT
Certification: CE ISO
Model Number: XTFFL
Trading Properties
Minimum Order Quantity: 1 set
Price: USD68000
Delivery Time: 30 work days
Payment Terms: T/T
Product Summary
Automatic Commercial Peanuts/Nuts Frying Coating Seasoning Processing Line Production Process Soaking → Blanching → Drying → Frying → Cooling → Flavoring → De-oiling This fully automatic production line for coating, frying, and seasoning replaces traditional manual coating methods. The automated ...

Product Details

Highlight:

500-1000kg/h Capacity Peanut Frying Machine

,

SUS304 Stainless Steel Peanut Processing Line

,

Intelligent Temperature Control Nut Frying Machine

Product Type: Nuts, Snacks
Material: SUS304
Warranty: 1 Year
Video Outgoing-Inspection: Provided
Machinery Test Report: Provided
Product Description
Automatic Commercial Peanuts/Nuts Frying Coating Seasoning Processing Line
Production Process
Soaking → Blanching → Drying → Frying → Cooling → Flavoring → De-oiling

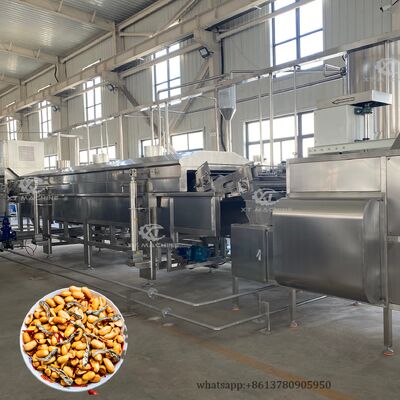

Automatic peanut processing line diagram showing coating, frying and seasoning equipment
This fully automatic production line for coating, frying, and seasoning replaces traditional manual coating methods. The automated system enhances production efficiency while ensuring consistent product quality. Each peanut or cashew nut receives uniform coating, maintaining the highest standards of taste and texture. The machine's optimized design minimizes ingredient waste and provides a cost-effective solution for industrial food processing.
Product Characteristics
Constructed from high-quality stainless steel with precision workmanship for durability and aesthetic appeal. Features intelligent temperature control instrumentation allowing customizable frying temperature settings with automatic regulation to prevent oil overheating, significantly reducing oil degradation.
Product Name Frying Coated Peanut Processing Plant
Machinery Function Coating & Frying
Capacity 500-1000kg/h
Application Snack Food Factory, Nuts Processing Plant
Voltage 220/380V

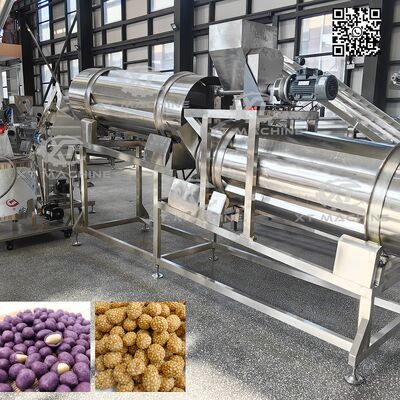

Frying Coated Peanut Processing Line
Automatic Peanut Frying Machine with 500-1000kg/h Capacity SUS304 Stainless Steel and Intelligent Temperature Control

  Automatic Coating Machine is ideal for products such as dough-coated peanuts, flavored coffees,nuts, sunflower seeds etc.

  The base product supply hopper with pneumatically controlled slide gate delivers product to the PLC controlled weigh scale. Accurately measured batches of base product are fed to the coating chamber. Rotation carries the base product out to the coating chamber wall.

  Solution is introduced to the high-speed spinning disc liquid applicator via a positive displacement pump, and powders are delivered in alternating cycles via a Uni-spense.

  Dry ingredient Distributor. Cycle times vary depending on product type and number of ingredients added.

Precise control of the batch size, and delivery of the liquid and powder, maintains consistency of the finished coated product.

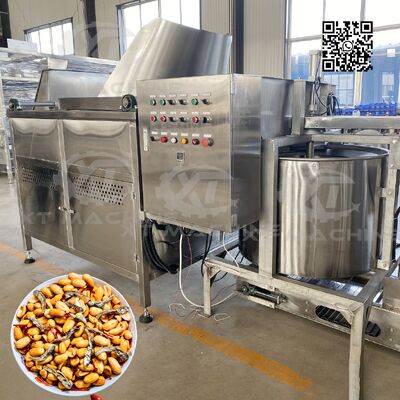

Frying Coated Peanut Processing Line---Continuous Frying Machine
Automatic Peanut Frying Machine with 500-1000kg/h Capacity SUS304 Stainless Steel and Intelligent Temperature Control

The Belt Type Continuous Frying Machine is made of food grade 304 stainless steel; it is mainly used for continuous processing of nuts, meat, aquatic products, pasta, vegetables and other foods, such as frying peanuts, Coated Peanut,broad beans, green beans, and puffed products.

This machine is mainly composed of transmission system, oil tank system, temperature control system, slag discharge system, automatic oil replenishment and other parts.

The Belt type Continuous Frying Machine controls the oil pump and the oil filter system's circulation loop through PLC. Heat is exchanged through the heat transfer oil heat exchanger. The oil volume at the three oil inlets can be controlled, the frying oil temperature zone can be controlled, and various frying processes can be well adjusted. The material is fully in contact with the hot oil in the fryer during movement on the double-layer mesh belt. The material is moved forward by the movement of the mesh belt and the scraper, and the upper and lower mesh belts drive the material forward at the same time.

Company Profile
Automatic Peanut Frying Machine with 500-1000kg/h Capacity SUS304 Stainless Steel and Intelligent Temperature Control

Yantai XT Machinery Manufacturing Co., Ltd.
Peanut & Nut Processing Equipment — From Single Machine to Turnkey Line

Yantai XT Machinery designs, manufactures, and exports complete processing solutions for peanuts and tree nuts. Our product range covers air Peanut/nut peeling machines, Continuous belt type roasting machine, Nut chopping machine, Frying machine, Blanched peanut production line, Nut frying line, Peanut coating and roasting line,Peanut coating and Frying line, Peanut butter production Line ,and shelling & grading lines—delivered as individual machines or fully integrated turnkey plants.

Our equipment exported to India, Russia, brazil, agentina, greece, bulgeria, Mexico,colombia, thailand, Ukraine, phillipins, Indonesia ,korea ,Japan etc.we understand what processors in different markets actually need: reliable performance, low maintenance, and equipment that adapts to local raw materials and voltage standards.

Certifications
Industry certifications and quality standards
Customer Visits
International customers visiting our manufacturing facility
Customer Feedback
Positive customer testimonials and feedback
Why Choose Our Processing Equipment?
  •  Integrated solutions — from a single blancher to a complete production line, with matched air compressors and auxiliary equipment.

  •  Material-specific engineering — adjustable parameters for peanuts, hazelnuts, almonds, and other nuts.

  • Verified before shipment — every unit is assembled, test-run, and documented with video outgoing-inspection.

  • Export-ready — voltage configuration to destination country, simplified maintenance access, remote commissioning support.


  • ISO9001 & CE certified.
    Tell us your raw material and target output—we'll configure the line.

Packaging & Shipping
Professional packaging and secure shipping methods for industrial equipment
Frequently Asked Questions
Can you customize the machine for me?
Yes, we can customize machines or complete production lines according to customer requirements and workshop dimensions.
When can I get the price?
We typically provide quotations within 24 hours after receiving your inquiry. For urgent pricing requests, please contact us directly via phone or indicate priority in your email.
Can you guarantee your quality?
Absolutely. As the manufacturing factory, we maintain the highest quality standards and prioritize our reputation. Quality assurance is our fundamental principle throughout production.
What shall we do if breakdown occurs?
Please notify us immediately of any equipment issues. During the warranty period, we respond promptly to breakdown notifications and provide remote support or arrange on-site service according to customer requirements.
What are your advantages compared with your competitors?
With extensive industry experience and rigorous quality control systems, we provide:
  • Stable, reliable products at competitive prices
  • Responsive customer service with quick inquiry resolution
  • Consistent on-time delivery
