Peanut Blanching Machine
Created with Pixso.

Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System

name

Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System

Brand Name: XT
Model Number: KQTP
MOQ: 1 set
Price: USD20000
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China Shandong
Certification:
CE ISO
Highlight:

98% Peeling Rate Peanut Blanching Machine

,

500-600kg/h Capacity Hazelnut Blanching Machine

,

PLC Control System Air Peanut Blancher

Product Description
Compressed Air Peanut Blanching Machine
Advanced Hazelnut Air Peeling Machine that utilizes compressed air as the peeling power, replacing traditional sand roller peeling machines. This innovative system ensures high efficiency and superior product quality.
Machine Overview

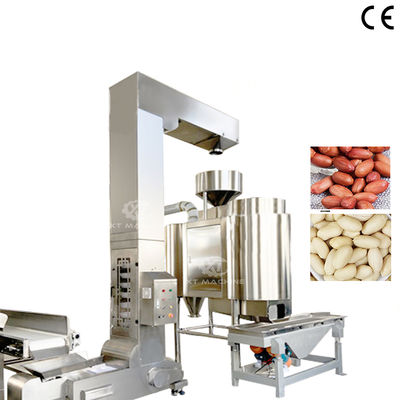

The Air Peanut Blancher Machine includes a comprehensive system with hopper, elevator, receiving bin, automatic weighing device, peeling device, red skin suction device, discharge vibration sifter, dust cyclone, and air compressor (can be customer-provided). The complete equipment is organized into five integrated systems: feeding system, peeling system, red skin collection system, discharging system, and PLC control system.
The Peanut Blanching Room features a specially designed chamber. The main blancher automatically executes the blanching process through programmed blowing and releasing cycles. This advanced technology ensures the peanut surface remains undamaged while achieving a peeling rate of up to 98%, with a whole blanched peanut rate exceeding 85%.
Operation Process
Materials are precisely weighed in the weighing hopper via the feeder, then transferred to the peeling drum equipped with spiral pieces. Compressed air is introduced into the peeling drum, causing materials to roll and rub against the spiral pieces to achieve optimal peeling. The powder and red coat generated during peeling are directed to the primary dust collection room through airflow, where dust is precipitated by internal wind rotation while the red coat is efficiently collected by the cyclone. After peeling completion, materials are discharged into the vibrating screen to remove impurities, resulting in perfectly peeled peanuts.

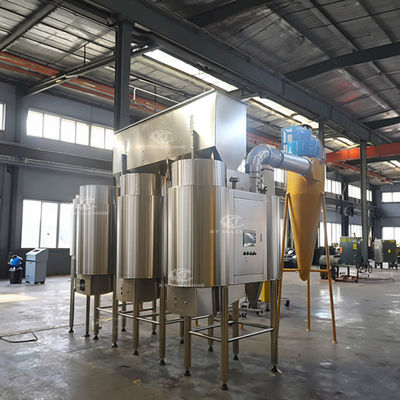

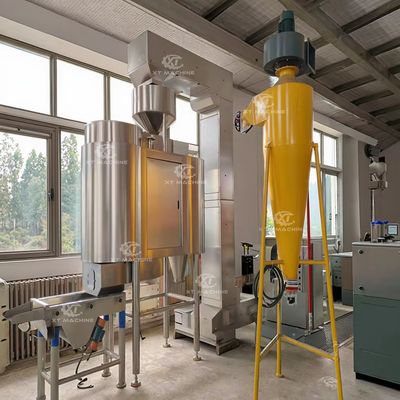

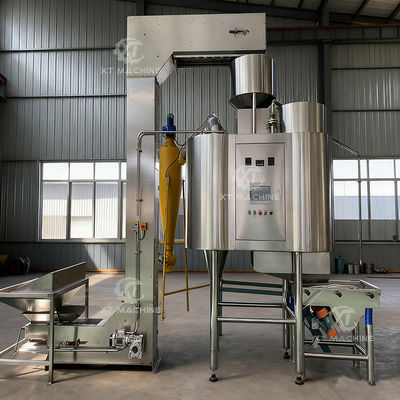

Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 0 Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 1 Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 2
Key Characteristics
  • Low half split rate with high peeling efficiency
  • No damage and no oil leaking after blanching process
  • Extended storage life with high gloss peanut kernels
  • Rational design meeting food safety and hygiene standards
  • Durable construction with minimal wearing parts
  • User-friendly operation with low failure rate
Technical Specifications
Item Model 1 Model 2
Capacity 500kg-600kg/h 1000kg-1200kg/h
Power 25.15kw 40.65kw
Split Rate < Below 15% < Below 15%
Blanching Moisture 6-6.5% 6-6.5%
Compressor Air Volume 3m³/min 3m³/min
Air Pressure 0.7-0.8mpa 0.7-0.8mpa
Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 3
Company Profile
Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 4
Customer Feedback
Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 5
Recommended Products
Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 6
Packaging & Shipping
Advanced Peanut Blanching Machine with 98% Peeling Rate 500-600kg/h Capacity and PLC Control System 7
Frequently Asked Questions
Q: Can you customize the machine for me?
A: Yes, we can customize machines or complete production lines according to customer requirements and workshop dimensions.
Q: When can I get the price?
A: We typically provide quotations within 24 hours after receiving your inquiry. For urgent pricing requests, please contact us directly or indicate priority in your email.
Q: Can you guarantee your quality?
A: Absolutely. As the manufacturing factory, we prioritize our reputation and maintain quality as our fundamental principle. You can have complete confidence in our production standards.
Q: What shall we do if breakdown occurs?
A: Please notify us immediately if any breakdown occurs. During the warranty period, we respond promptly upon receiving notification and provide troubleshooting via telephone/fax or arrange on-site technical support as required.
Q: What are your advantages compared with your competitors?
A: With extensive industry experience and rigorous quality control systems, we offer: 1) Stable, reliable products at competitive prices; 2) Exceptional customer service with rapid response times; 3) Guaranteed on-time delivery.
