Brand Name: | XT |
Model Number: | XT-KQTP-B |
MOQ: | 1 set |
Price: | Negotation |
Payment Terms: | L/C,T/T |
Supply Ability: | 6 sets/month |
※Machine components

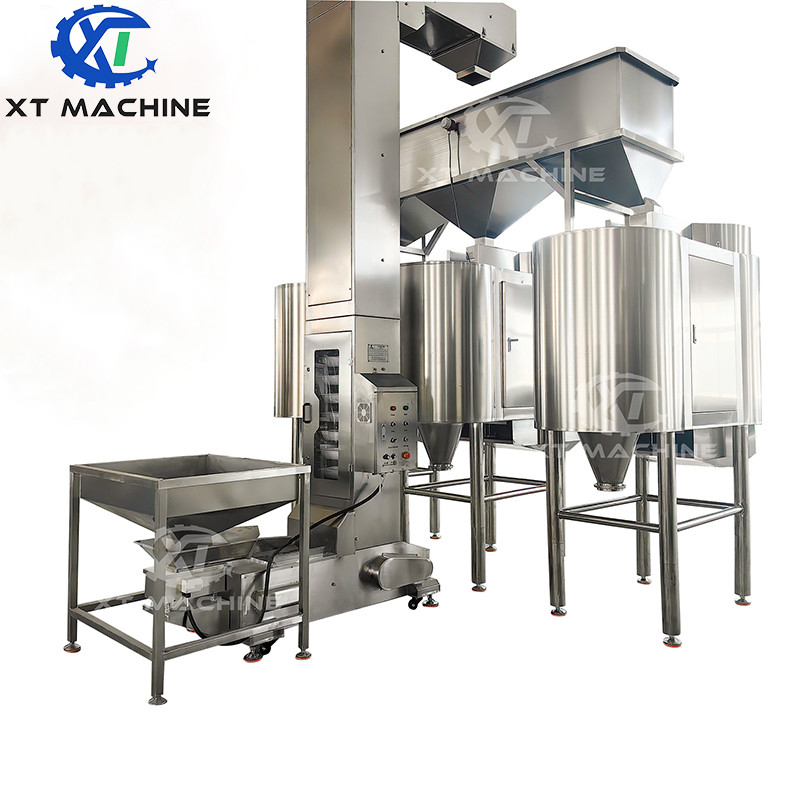

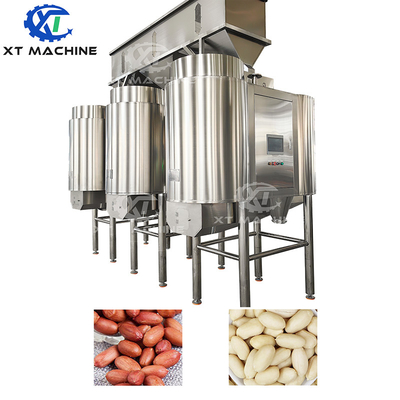

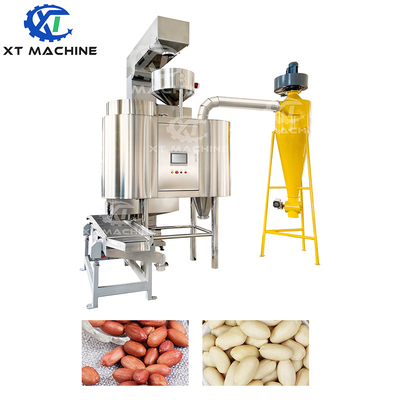

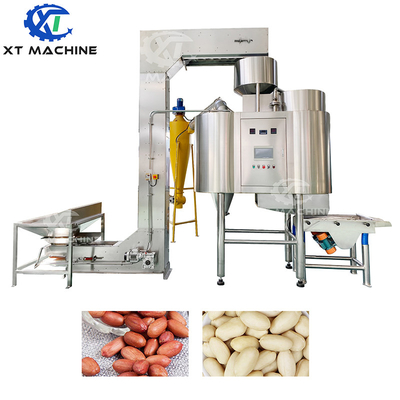

The whole set of equipment is divided into five parts: feeding system, peeling system, red skin collection system, unloading system and PLC control system.
The peanut blanching room adopts a special structure of the cavity. The main blanching machine automatically completes the blanching process by blowing and releasing according to the program instructions. The surface of the peeled peanuts is not damaged, the peeling rate is as high as 98%, and the overall blanching rate of peanuts is also as high as 85%.
※Operation process
After being weighed by the feeder, the material enters the peeling drum equipped with spiral blades. Compressed air is blown into the peeling drum, causing the material to roll and rub inside the spiral blades to achieve the peeling effect. The powder and red skin produced during the peeling process enter the primary dust collecting chamber with the airflow under the action of compressed air. The dust is spun and settled by the wind, and the red skin is collected by the cyclone separator.The peeled material is discharged into the vibrating screen to remove impurities and obtain well-peeled peanuts.
Capacity |
MODEL I 500-600kg/h |
MODEL II 1000-1200kg/h |
Power |
25.15kw |
40.65kw |
Blanching rate |
Above 98% |
Above 98% |
Split rate |
Below 15% |
Below 15% |
Blanching moisture |
6-6.5% |
6-6.5% |
Compressor air volume |
3m³/min |
3m³/min |
Air pressure |
0.7-0.8mpa |
0.7-0.8mpa |
Size |
2104x904x3204.8mm |
2104x904x3204.8mm |
Gas consumption |
7-10kg |
15~20kg |
FAQ
1. Q: Can you customize the machine for me ?
A: Yes, we can customize machine or production line according to customer's requirements and workshop size.
2. Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
3. Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your E-mail so that we will regard your inquiry priority.
4. Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More important , we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
5. Q: What are your advantages compared with your competitors?
A: With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
