Brand Name: | XT |
Model Number: | XT-DGNKX |
MOQ: | 1 Set |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 1Set/Month |
※Description:

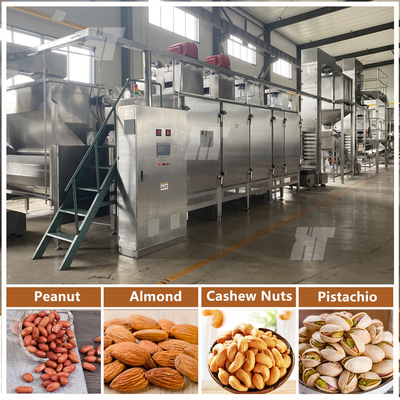

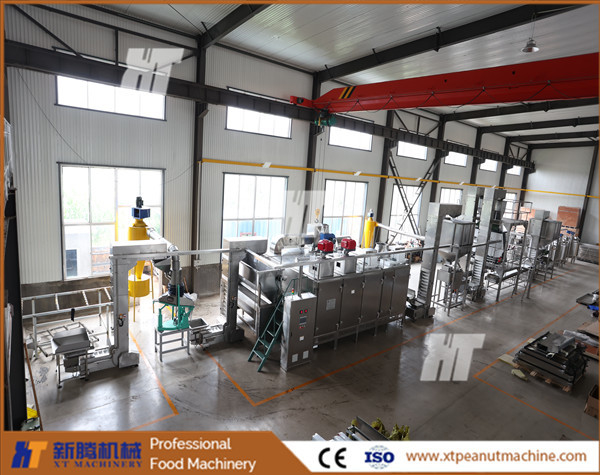

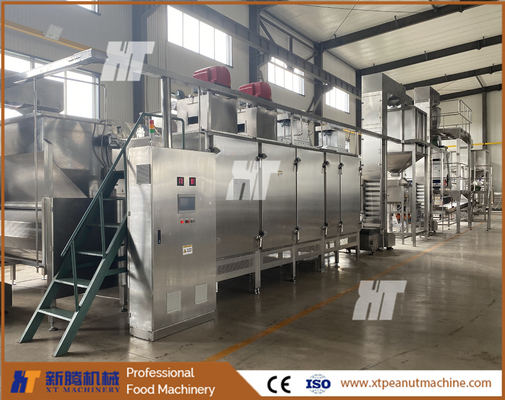

The baking machine is composed of a frame, a conveyor mesh belt, a heating device and a thermal cycle device.
The hopper on the front section of the equipment has a gate to control the thickness of the material layer. Choosing a suitable material layer thickness for different materials with different air permeability characteristics can effectively ensure the uniform penetration of hot air.
※Technical data:
No
|
Item
|
DGNKX-7300
|
DGNKX-7800
|
DGNKX-11600
|
DGNKX-13000
|
1
|
Power
|
14.6kw
|
22.6kw
|
22.6kw
|
36kw
|
2
|
Capacity
|
500Kg/h
|
1000kg/h
|
1000kg/h
|
2000kg/h
|
3
|
Roasting Temperature
|
0°C to 180°C
|
|||
4
|
Heating way
|
LPG/GAS/ELECTRIC
|
|||
5
|
Conveyor speed
|
adjustable
|
|||
6
|
Material thickness
|
6-10cm
|
|||
7
|
Gas supply Condition
|
Gas burning pressure :3-7kpa
|
|||
gas pipeline pressure:20-50kpa
|
|||||
8
|
Installation Dimension
|
10.3*2.4*2.9m
|
10.8*4.15*3.8m
|
14.6*2.4*2.9m
|
16*4.15*3.8m
|
※Application:
The machine mainly process food: seeds, beans, kernels, nut (e.g. various kinds of peanut kernels, cashew nuts, hazelnuts, melon seeds, almond, chestnut, horsebean) etc.
※Features:
1. Heating method could be heated both by electric and gas, and other method.
2. This chain roasting exchange heat by circulating fan, then realize the strong airflow roasting, which could enhance the efficient and quality of roasting.
3. In the end of the machine, there is a cooling area, which makes the roasting and cooling integrated producing, structure firmly.
4. The roasted materials will be heated evenly, the small temperature difference between inside and outside, no deformation, the color will not change.
5. The roasting speed will be controlled by automatic frequency control of the motor, high efficiency; Double temperature control heating, less energy waste, save energy.
6. Can set temperature control (0-300) and high elasticity.
※After-sales service:
1. Before deliver the machine, we will test and adjust everything properly.
2. Once all is done, we will make detailed picture for customer to confirm for delivery.
3. Operation video will be provided with the machine, so that clients can use our machine without difficulty.
4. Any problems occur while using, we will provide profession advice and technical support ASAP.
5. Spare parts of the machine is provide whole serving life with reasonable price.
