Peanut Sorting Machine Peanut Grading Machine Peanut Sieving Machine

Brand Name:	XT
Model Number:	XT-SX-800 XT-SX-1000 XT-SX-1200
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	3-5 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product Name:

Peanut Sorting Machine Peanut Grading Machine Peanut Sieving Machine

Material:

Carbon Steel

Capacity:

2000-8000kg/h

Power:

1.5kw 2.2kw 4.75kw

Heating Method:

LNG/LPG Gas, Electricity

Layer Available:

3/4/5/6

High Light::

8 Ton/H Peanut Grading Machine, 5 Layers Peanut Grading Machine

Application:

Devide The Nuts Into Different Size

Warrenty:

1 Year

After Warranty:

Video Technical Support, Online Support, Spare Parts

Packaging Details:

Plywood pallet with wrapping film

Supply Ability:

3-5 Set/Month

Highlight:

2.2kw Peanut Grading Machine

Peanut Grading Machine 5000kg/H

5000kg/H Peanut Machine Electricity

Product Description

Peanut Sorting Machine Peanut Grading Machine Peanut Sieving Machine

※Description:

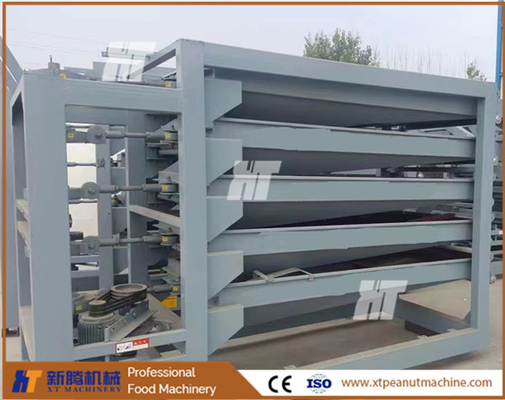

This peanut sieving machine is mainly used to sort and grade peanut kernel.Adopting Chain Wheel and Chain to drive push rod,peanut will be sorted recycle fluent. Screen Pieces are punched by steel plate,there are plates for reverting peanut under screen box,thus, all peanut kernel will be sorted and graded by the whole sorting and grading procedure. Screen Box all had a certain gradient, and it will be convenient for peanut to outflow.

※Application:

Devide the Nuts/Peanut into different size

※Data:

Long Shape Peanut Kernel	24/28,28/32,34/38,38/42,42/46,45/55
Round Shape Peanut Kernel	25/35,35/40,40/50,50/60,60/70,70/80,80/90,90/100

Peanut Sorting Machine Peanut Grading Machine Peanut Sieving Machine 0

※Features:

a. Compact structure
b. High efficiency
c. Easy to use
d. Low maintenance

※Technical data:

Model	SX-800	SX-1000	SX1200
Capacity(kg/h)	2~3	4~6	6~8
Power (kw)	1.5	2.2	4.75
Valid Screen Size(mm)	785× 2275	985× 2275	1230× 2700
Layer Available	3/4/5	3/4/5/6	3/4/5/6
