1.5kw Groundnut Sorting Machine ISO Groundnut Grading Machine Screening Machine

Brand Name:	XT
Model Number:	XT-SX-800 XT-SX-1000 XT-SX-1200
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	3-5 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product Name:

Groundnut Sorting Machine Peanut Grading Machine Peanut Screening Machine

Material:

Carbon Steel

Capacity:

2000-8000kg/h

Power:

1.5kw 2.2kw 4.75kw

Heating Method:

LNG/LPG Gas, Electricity

Layer Available:

3/4/5/6

High Light::

8 Ton/H Peanut Grading Machine, 5 Layers Peanut Grading Machine

Application:

Devide The Nuts Into Different Size

Warrenty:

1 Year

After Warranty:

Video Technical Support, Online Support, Spare Parts

Packaging Details:

Plywood pallet with wrapping film

Supply Ability:

3-5 Set/Month

Highlight:

1.5kw Groundnut Sorting Machine

Groundnut Sorting Machine ISO

ISO Groundnut Grading Machine

Product Description

Groundnut Sorting Machine Peanut Grading Machine Peanut Screening Machine

※Description:

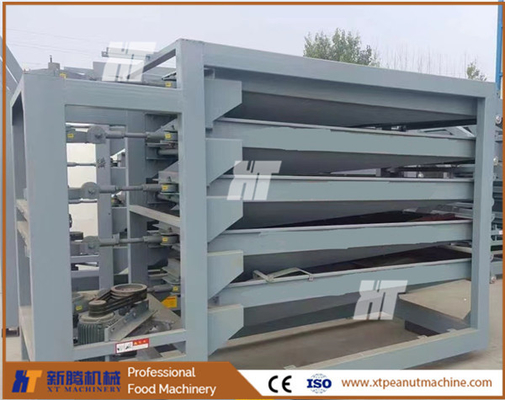

Peanut sieving machine is primary equipment which is used to grade different specification peanut kernels. Peanut sieving machine is a full set of included hopper, elevator, peanut sieving machine, supporting base, finished peanut collector etc. 3/4/5 layers are available, including the sieving residue, 4-5 grades can be sorted out once.

The peanut screening machine is adopted sprocket and chain driven to push rod, sieving body can reciprocating sieve smooth, sieve sheet is made of iron punching, there are returning material board in each layer sieving body. Make the material which above the sieve sheet through whole screening, avoid the material fall down lower levels without sieving in middle or front and make wrong grade. It have certain inclined in each sieving body front and back. material can flow smoothly.

1.5kw Groundnut Sorting Machine ISO Groundnut Grading Machine Screening Machine 0

※Application:

Devide the Nuts/Peanut into different size

※Data:

Long Shape Peanut Kernel	24/28,28/32,34/38,38/42,42/46,45/55
Round Shape Peanut Kernel	25/35,35/40,40/50,50/60,60/70,70/80,80/90,90/100

※Features:

a. Compact structure
b. High efficiency
c. Easy to use
d. Low maintenance

※Technical data:

Model	SX-800	SX-1000	SX1200
Capacity(kg/h)	2~3	4~6	6~8
Power (kw)	1.5	2.2	4.75
Valid Screen Size(mm)	785× 2275	985× 2275	1230× 2700
Layer Available	3/4/5	3/4/5/6	3/4/5/6

1.5kw Groundnut Sorting Machine ISO Groundnut Grading Machine Screening Machine 1
