Peanut Frying Machine
Created with Pixso.

ISO Peanut Frying Machine Chickpea Soybean Auto Frying Machine

ISO Peanut Frying Machine Chickpea Soybean Auto Frying Machine

Brand Name: XT
Model Number: XT-YZX
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1-2 Set/Month
Detail Information
Place of Origin:
China
Certification:
ISO
Product Name:
XT Machinery ISO Oil-Saving Soybean Bean Fryer Machine Chickpea Frying Machine
Material:
SUS304
Capacity:
350-400kg/h
Voltage:
380 V/50hz/3phase
Output Product:
Fried And Flavored Peanut
Heating Method:
LNG/LPG Gas, Electricity
Warrenty:
1 Year
After Warranty:
Video Technical Support, Online Support, Spare Parts
Application:
Peanut, Hazelnut
Processing:
Frying, De-oiling, Flavoring
Packaging Details:
Plywood pallet with wrapping film
Supply Ability:
1-2 Set/Month
Highlight:

ISO Peanut Frying Machine Chickpea

,

Peanut Frying Machine Chickpea Soybean

,

Soybean Auto Frying Machine

Product Description

XT Machinery ISO Oil-Saving Soybean Bean Fryer Machine Chickpea Frying Machine

※Processing:

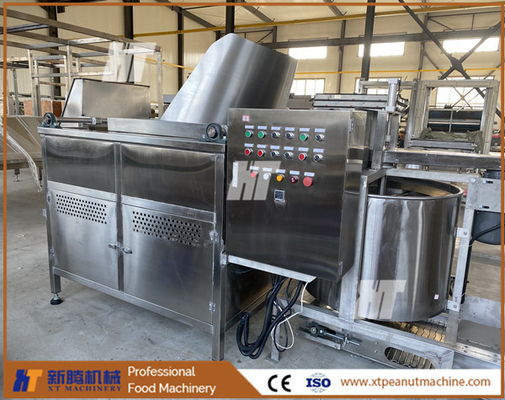

ISO Peanut Frying Machine Chickpea Soybean Auto Frying Machine 0


Batch fryer - oil filter - de-oiling machine - seasoning machine - conveyor


Batch fryer: used for frying many kinds of foods, equipment with timmer, temperature controller, automatic stirring device, and automatic unloading device.


Filter: used for filtering the sediments while frying, try the best to prolong the oil using life.


De-oiling machine: centrifugal de-oiling and continuous working, the de-oiling time can be adjusted, frequency conversion control speed, frequency conversion trig.


Seasoning machine: continuous flavoring machine, we can adjust the tube speed and powder feeding speed to get the best mixing effect.
Conveyor: convey the finished products to the next machine.

※Drawing:

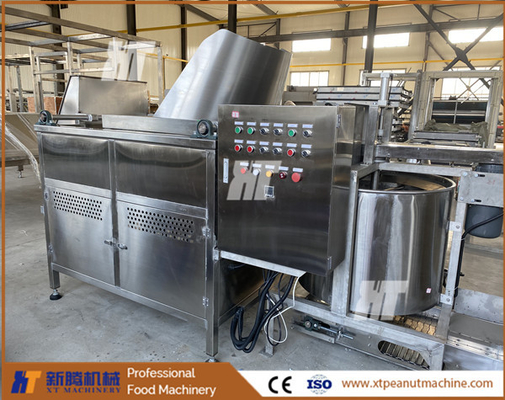

ISO Peanut Frying Machine Chickpea Soybean Auto Frying Machine 1





Application:



Frying Machine is used for Fried food: peanuts, almond, cashew nuts, broad beans, soybeans, chickpeas, chicken and rice, squid circle, potato chips, fried balls, fried fries, spring rolls, chicken fillet, fish and tofu, instant noodles, tofu, etc.



※Feature:



 1. Peanut Frying Machine adopts the newest and advanced technology, it can saving 50% energy, 40% oil and gas than common fryer.



2. Peanut Frying Machine "Water-oil separator" which can keep the oil clean and continuous working. The oil and water temperature can be controlled automatically.



3. Peanut Frying Machine can fry all kinds of goods without the taint of odor. No oil smoke, this can ensure the health of the operator.



4. Peanut Frying Machine is with characteristics of controlling the temperature automatically ,even heating, can keep stable temperature and the nutrition of frying foods. Easy operation, one person can operate it.



5. Peanut Frying Machine is made of 304 stainless steel materials, with long service life and can reach the hygiene standard.



Technical data:



Nuts Frying Production Line 350-400kg/h

No.



Name Q’TY Power(KW) Remark
01

Frying Machine



1 0.37+0.55kw

45-50kg/batch

Size:2500*1900*1950mm

Weight:550kg


02

De-oiling machine



1 1.5kw

Size:1350*1070*860mm

Weight:320kg


03

Conveyor



1 0.37kw

Size:3500*750*1400mm

Weight:260kg


04

Flavoring machine



1 0.37kw

Size:1350*850*1600mm

Weight:350kg


Assistant equipment
05

Exhaust

1 0.75kw

Size:2500*2100*1000mm

Weight:100kg


06

oil filter

1 1.5kw

Size:635*410*800mm

weight:150kg


07 Oil return tank 1 0.75kw
08 Spare parts
09 PLC

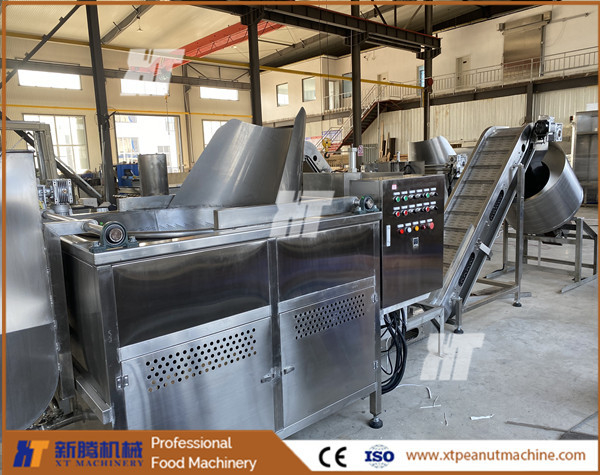

ISO Peanut Frying Machine Chickpea Soybean Auto Frying Machine 2

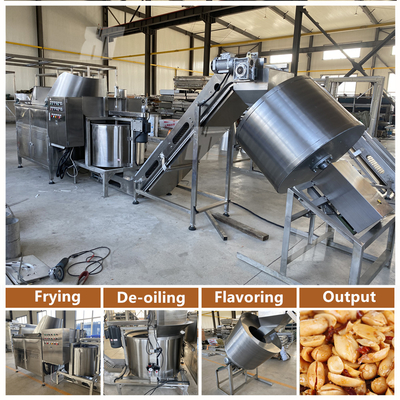

ISO Peanut Frying Machine Chickpea Soybean Auto Frying Machine 3
