Peanut Frying Machine
Created with Pixso.

380v Peanut Frying Machine Snack Flavoring Peanut Seasoning Machine 400kg/H

380v Peanut Frying Machine Snack Flavoring Peanut Seasoning Machine 400kg/H

Brand Name: XT
Model Number: XT-YZX
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1-2 Set/Month
Detail Information
Place of Origin:
China
Certification:
ISO
Product Name:
Factory Snack Flavoring Machine/ Peanut Frying Machine/ Peanut Seasoning Machine
Material:
SUS304
Capacity:
350-400kg/h
Voltage:
380 V/50hz/3phase
Output Product:
Fried And Flavored Peanut
Heating Method:
LNG/LPG Gas, Electricity
Warrenty:
1 Year
After Warranty:
Video Technical Support, Online Support, Spare Parts
Application:
Peanut, Hazelnut
Processing:
Frying, De-oiling, Flavoring
Packaging Details:
Plywood pallet with wrapping film
Supply Ability:
1-2 Set/Month
Highlight:

380v Peanut Frying Machine

,

400kg/h Peanut Frying Machine

,

Peanut Seasoning Machine 400kg/h

Product Description

Factory Snack Flavoring Machine/ Peanut Frying Machine/ Peanut Seasoning Machine

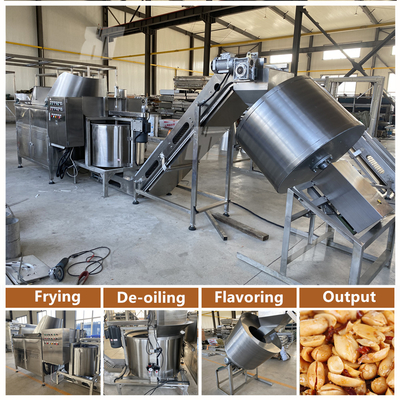

※Processing:



• Fryer machine: Put the peanut to the inlet of the fryer, set oil temperature, after the peanut is fried in the oil, they are output by the conveyor belt and enter the next step of deoiling.



• Deoiling machine: The peanut will be cooled quickly and remove the surface oil through high-pressure wind power.



• Conveyor: The belt conveyor to convey the peanut into the next step, at the same time, the worker can pick out the defective peanut which is not fried well.



• Seasoning machine: The upward side of the roller is equipped with hopper, so the seasonings can be sprayed into roller continuously and uniformly, it can flavor peanut through the turning roller.

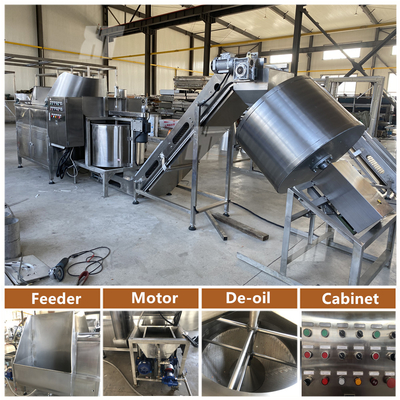

  380v Peanut Frying Machine Snack Flavoring Peanut Seasoning Machine 400kg/H 0
※Drawing:

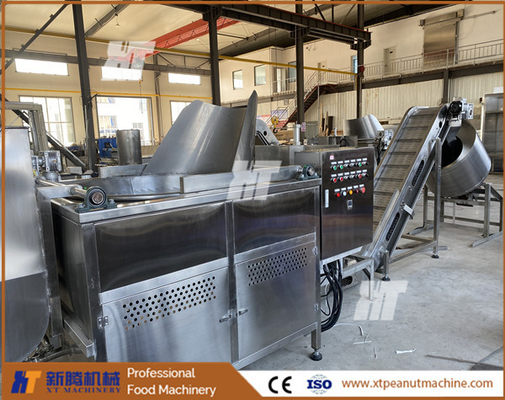

380v Peanut Frying Machine Snack Flavoring Peanut Seasoning Machine 400kg/H 1





Application:


Peanuts, Sunflower Seeds, Pumpkin Seeds, Cashew Nut, Horse Beans, Almonds, Walnuts, Hazelnut Pistachios, Pine Nuts, Pistachios etc.



※Feature:

  • Peanut Frying Machine adopts the newest and advanced technology, it can saving 50% energy, 40% oil and gas than common fryer.
  • Peanut Frying Machine "Water-oil separator" which can keep the oil clean and continuous working. The oil and water temperature can be controlled automatically.
  • Peanut Frying Machine can fry all kinds of goods without the taint of odor. No oil smoke, this can ensure the health of the operator.
  • Peanut Frying Machine is with characteristics of controlling the temperature automatically ,even heating, can keep stable temperature and the nutrition of frying foods. Easy operation, one person can operate it.
  • Peanut Frying Machine is made of 304 stainless steel materials, with long service life and can reach the hygiene standard.

Technical data:



Nuts Frying Production Line 350-400kg/h

No.



Name Q’TY Power(KW) Remark
01

Frying Machine



1 0.37+0.55kw

45-50kg/batch

Size:2500*1900*1950mm

Weight:550kg


02

De-oiling machine



1 1.5kw

Size:1350*1070*860mm

Weight:320kg


03

Conveyor



1 0.37kw

Size:3500*750*1400mm

Weight:260kg


04

Flavoring machine



1 0.37kw

Size:1350*850*1600mm

Weight:350kg


Assistant equipment
05

Exhaust

1 0.75kw

Size:2500*2100*1000mm

Weight:100kg


06

oil filter

1 1.5kw

Size:635*410*800mm

weight:150kg


07 Oil return tank 1 0.75kw
08 Spare parts
09 PLC

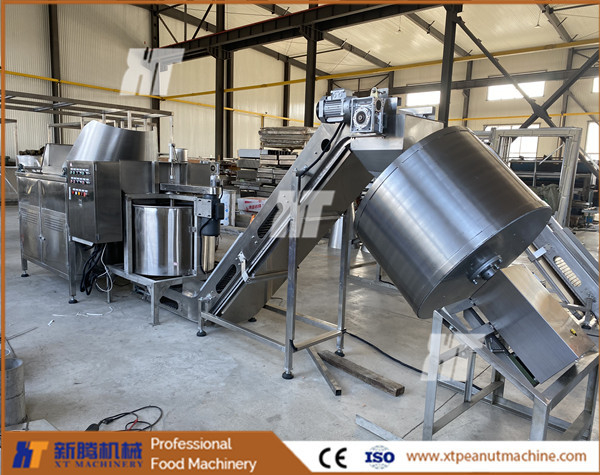

380v Peanut Frying Machine Snack Flavoring Peanut Seasoning Machine 400kg/H 2
