SUS304 Peanut Air Cooling System Baked Roasted Seeds Food Cooler Peanut Cooling Conveyor

Brand Name:	XT
Model Number:	XT-LQJ-3000
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	2-3 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product Name:

SUS304 Peanut Air Cooling System Baked Roasted Seeds Food Cooler Peanut Cooling Conveyor

Material:

SUS304

Voltage:

380±10V

Power:

5.1kw

Weight:

1000KGS

Function:

Cooling The Peanut Of High Temperature

Heating Method:

LNG/LPG Gas, Electricity

Application:

Peanuts, Cashew Nut, Almonds, Hazelnut , Pistachio ,sunflower Seeds ,sesame Seeds Etc.

Warrenty:

1 Year

After Warranty:

Video Technical Support, Online Support, Spare Parts

Packaging Details:

Plywood pallet with wrapping film

Supply Ability:

2-3 Set/Month

Highlight:

SUS304 Peanut Air Cooling System

Peanut Cooling Conveyor 5.1kw

SUS304 Roasted Seeds Food Cooler

Product Description

SUS304 Peanut Air Cooling System Baked Roasted Seeds Food Cooler Peanut Cooling Conveyor

※Description:

Working principle of peanut cooling machine

(1) Transportation Principle: The reducer (peanut cooling machine) drives the driving wheel through the chain drive, and the driving wheel uses the spline structure to drive the mesh belt forward.

(2) Cooling Principle: Cooling fan sucks room air through the air inlet, sucks through the mesh belt and material under negative pressure, penetrates the material to the bottom of the mesh belt, and the wind with heat enters the impeller of the cooling fan through the conversion box and blows out the equipment through the fan to discharge heat.

SUS304 Peanut Air Cooling System Baked Roasted Seeds Food Cooler Peanut Cooling Conveyor 0

※Application:

Peanuts, cashew nut, almonds, hazelnut , pistachio ,sunflower seeds ,sesame seeds etc.

※Feature:

High wind speed, fast cooling speed and good effect.
There are two ways of discharging: pneumatic and manual.
The parts in contact with the material are made of stainless steel, which is safe and hygienic.
The cooling car can be customized according to the specific requirements of customers.

※Technical data:

No.	Q’ty	1set
1	Size	5696X1700X2125mm
2	Capacity	500Kg/h-600Kg/h
3	Model	LQ-180
4	Length of cooling unit	2190mm
5	Q’ty of cooling unit	1
6	Conveyor type	Hinged conveyor mesh belt
7	Variable frequency drive power of mesh belt	0.75KW
8	Effective cooling area	3.2m²
9	The layer number of cooling	1
10	Effective width of mesh belt	1480mm
11	Mesh opening rate	60%
12	Cooling fan drive power	4KW
13	Impeller diameter of cooling fan(mm)	Ф780
14	Air volume of Cooling fan(m³/h)	14000
15	Temperature of material after cooling(ºC)	Room temperature

※Application:

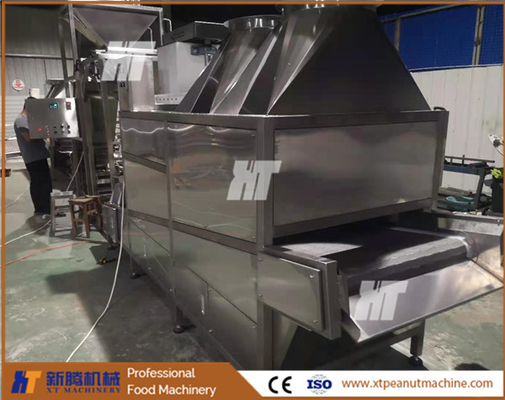

SUS304 Peanut Air Cooling System Baked Roasted Seeds Food Cooler Peanut Cooling Conveyor 1

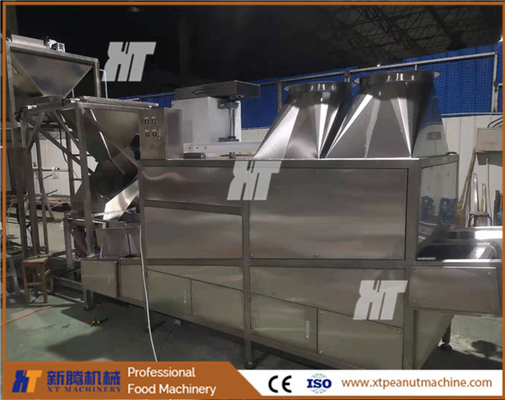

SUS304 Peanut Air Cooling System Baked Roasted Seeds Food Cooler Peanut Cooling Conveyor 2
